A16 Sliding 5th Wheel Hitch, 16,000 lbs. - 1652100000-000

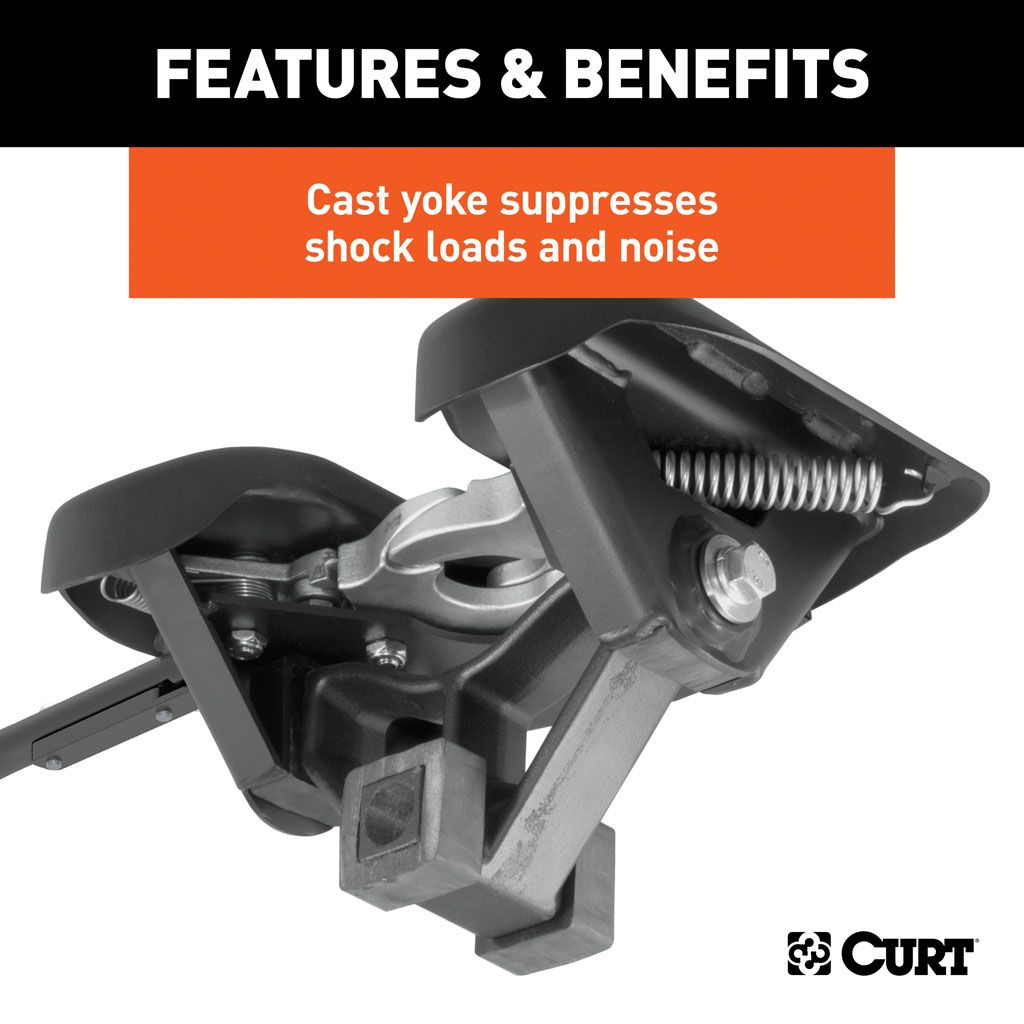

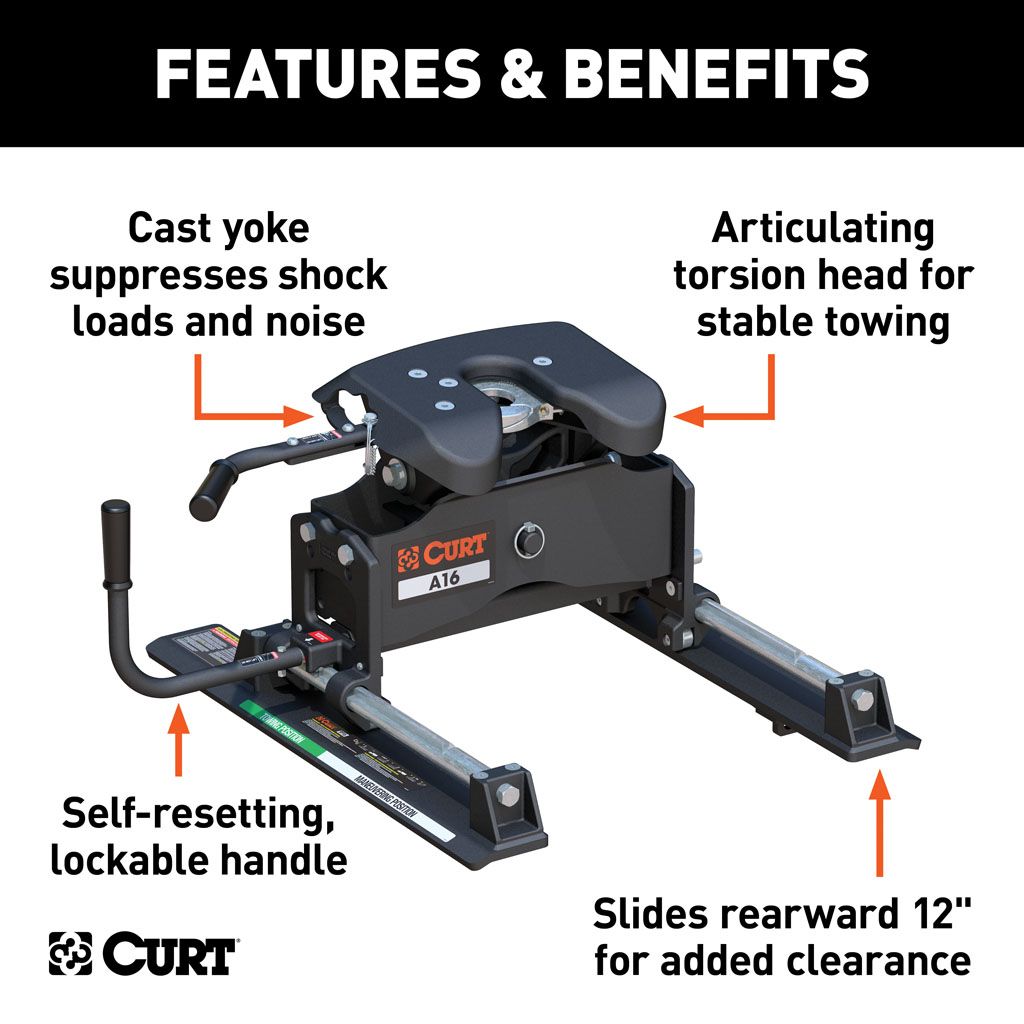

Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

Fully articulating torsion head for controlled coupling and stable towing

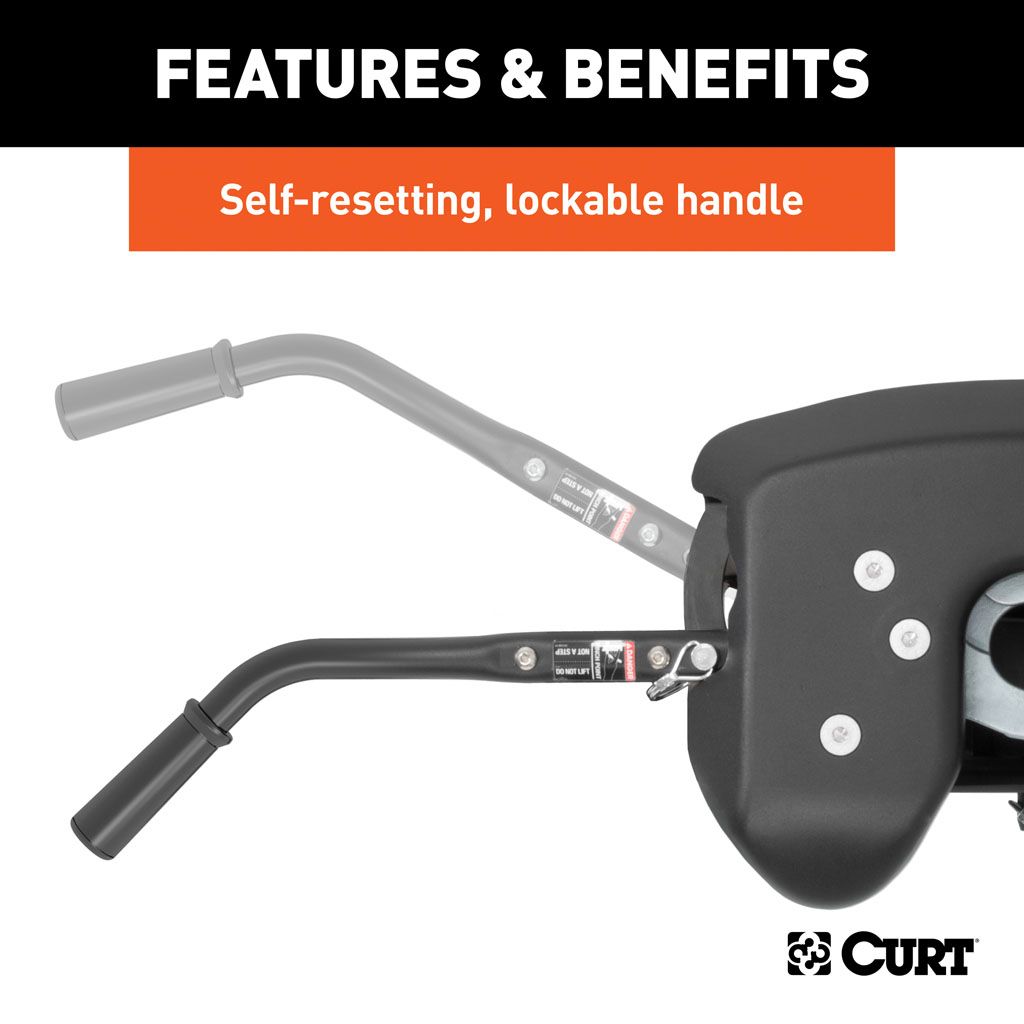

Lockable handle self-resets to the ready-to-couple position after uncoupling

High-strength, interlocking jaws fully wrap the kingpin to minimize noise

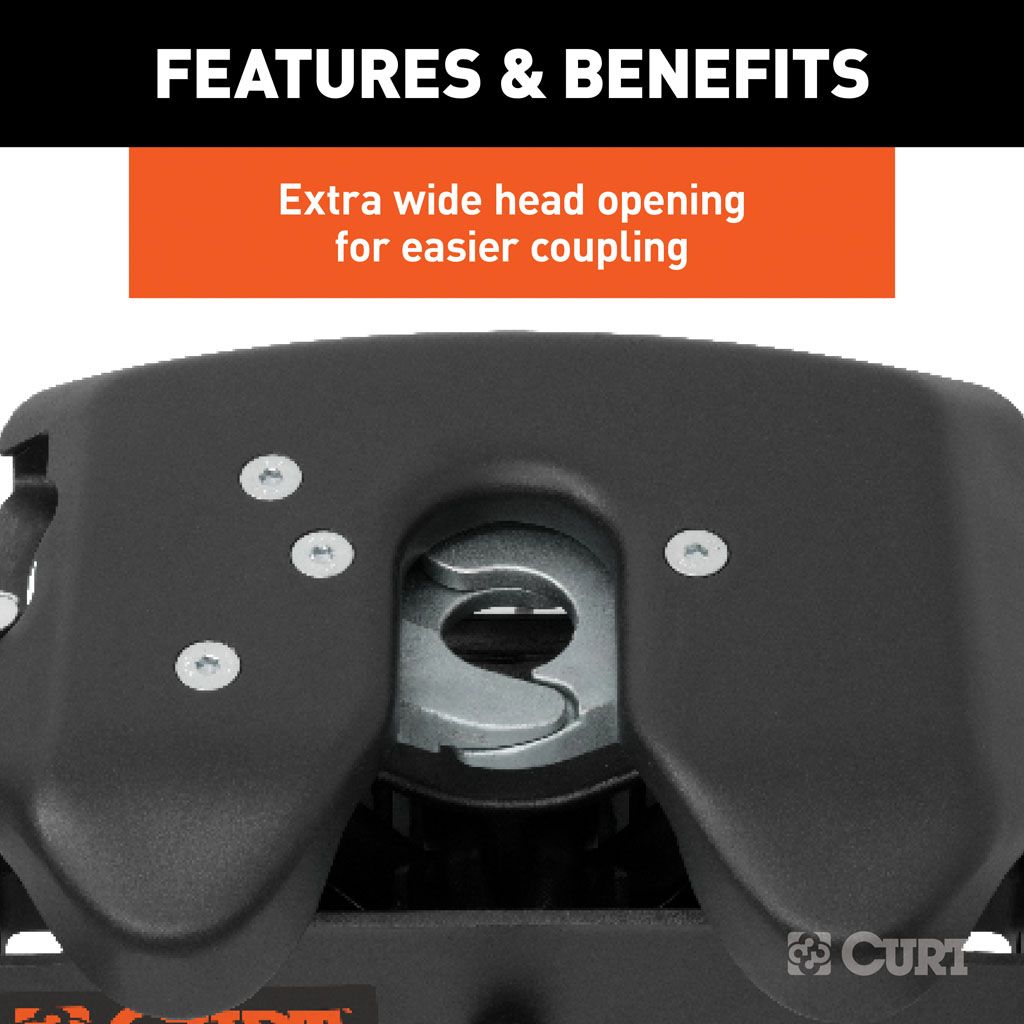

Extra wide head opening for easier coupling

Fast, one-pin head removal makes moving easy with smaller, lighter pieces

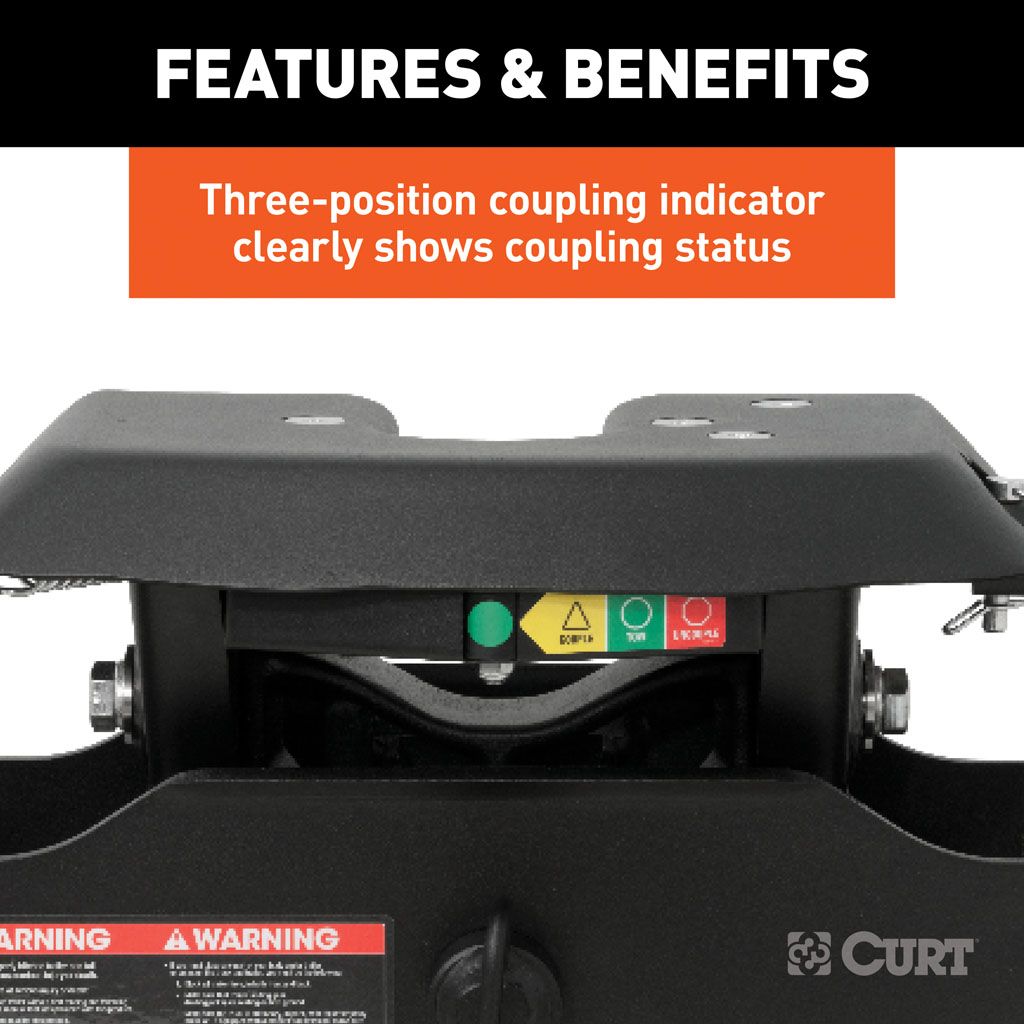

Three-position coupling indicator clearly shows coupling status

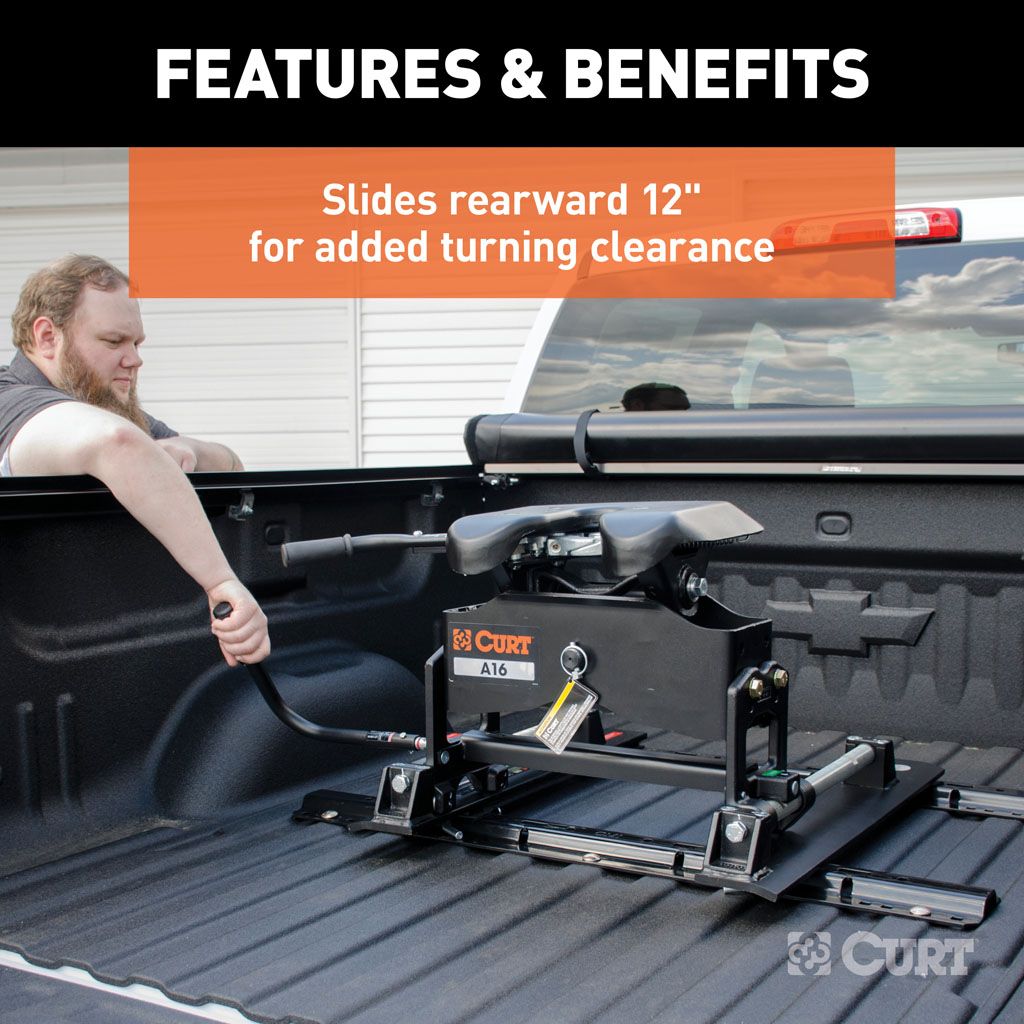

R16 5th wheel slider #16560 provides 12" of travel in the truck bed

Rolls on wheels and solid, non-binding rods to be a true rolling unit

Mounts to all industry-standard base rails

Compatible with kingpin extension boxes, including common pivoting pin boxes

Offers three height adjustment positions to adapt to each unique truck bed

Includes a polyethylene lube plate to eliminate messy grease deposits

Tested for safety in accordance with SAE J2638

Protected by a highly durable carbide powder coat finish

Limited lifetime warranty (one-year finish, one-year parts)

Notes:

Includes A16 5th wheel hitch head #16520, R16 slider #16560 and hardware (patent# 8,827,298)

Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.

Capacity limited to lowest-rated towing component

• Installation Time Exact0
• HUB_USAD25
• Gross Trailer Weight (GTW)16,000 LB
• Vertical Load4,000 LB
• MaterialBlank
• Part Type*
• Shipping Weight180.100
• Head SeriesA-Series

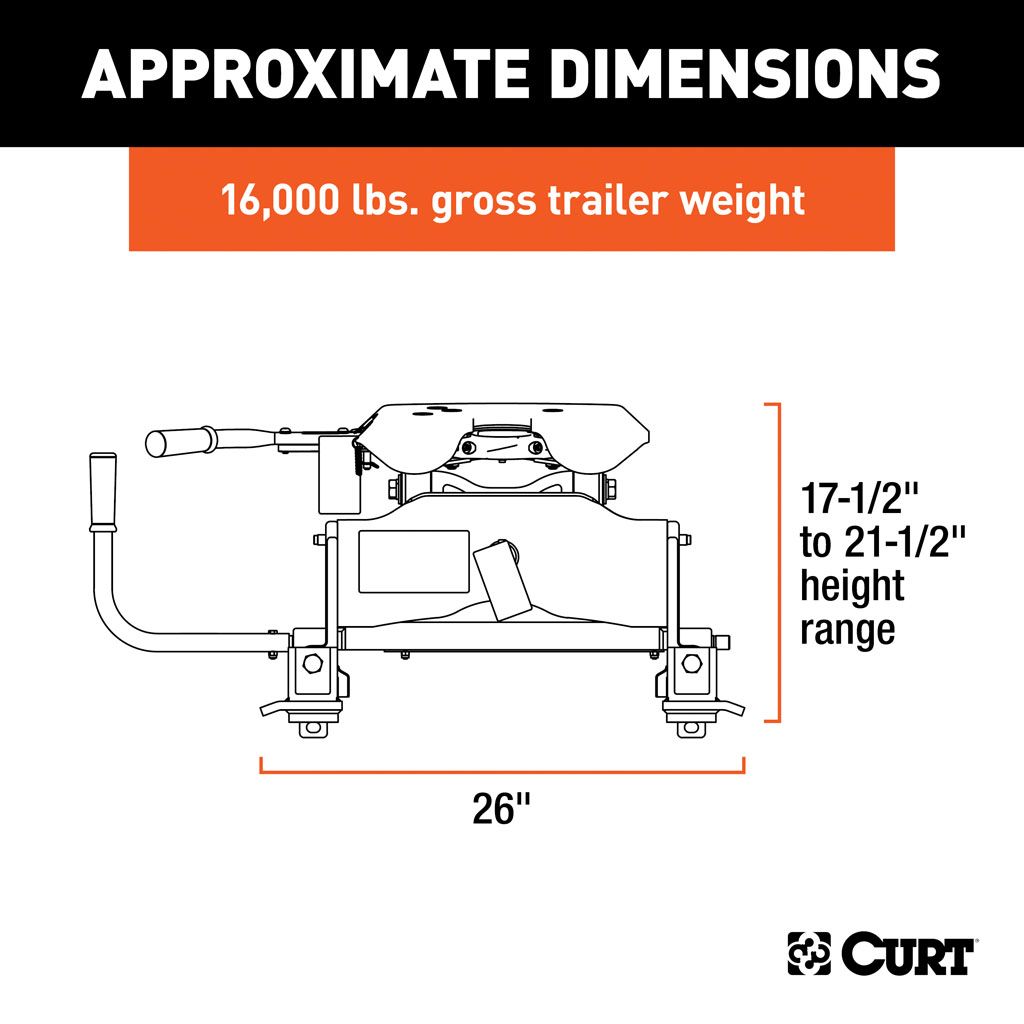

• Height17-1/2 IN - 21-1/2 IN
• FinishCARBIDE BLACK POWDER COAT
• WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)
• Shipping:Freight
