Bulb Led Replacement #103 - 55-1052
PRODUCT DESCRIPTION

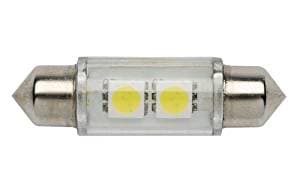

Bulb Led Replacement #103
Automotive LED Bulbs use 90% less power than comparable bulbs. This means you can run more than 10 of these with the same electrical power it would take to operate one comparable incandescent bulb. And using less power means less heat is generated, which practically eliminates the 'burning' of lenses of covered light fixtures.
These ultra-bright automotive LED bulbs have a 10,000 hour life expectancy without significant degradation of brilliance. That's 50 times longer than an incandescent bulb, who's brightness degrades rapidly. These bulbs produce more than twice the lumens than other LED bulbs of comparable wattage.
So that you may know the relative 'brightness' as measured in Lumen Output, please use the charts below to compare the Lumen Output and the power usage (Watts - Amps) of the the LED bulbs with the incandescent bulbs of a comparable base style.
Click for larger Image | Description | Lumen Output | Watts - Amps | Base Style | Comp. Chart | Our Part # |
Revolution 1156 | 170 | 2.59w - 0.216a | Single Contact BA15s | A | 55-1053 | |
Revolution 1157 | 160/15 | 25.2/7.36w - 2.1/.59a | Double Contact BAY15d | A | 55-1037 | |
Revolution 194 | 25 | 0.65w - 0.054a | Wedge - W2.1x9.5d | B | 55-1007 | |
Revolution 1036 | 20 | 0.43w - 0.036a | Festoon - SV8.5-8 | 1-7/16" Long | 55-1052 | |
Load Resistor | 18-0053 Pack of 2 |
Comparison Chart A | Comparison Chart B | |||||
Incandescent Bulb | Lumen Output | Wattage - Amps | Incandescent Bulb | Lumen Output | Wattage - Amps | |
93 | 75 | 13.3w - 1.04a | 194 | 10 | 3.3w - .27a | |
1003 | 75 | 12.0w - 0.938a | 904 | 20.1 | 9.3w - 0.69a | |
1073 | 160 | 21.0w - 1.8a | 906 | 30.1 | 9.3w - 0.69a | |
1093 | 76 | 15.2 - 1.19a | 912 | 60.3 | 12.8w - 1.0a | |
1129 | 105 | 16.8w - 2.63a | 916 | 10.0 | 7.3w - 0.54a | |
1141 | 104 | 18.4 - 1.44a | 917 | 50.4 | 15.4w - 1.2a | |
1156 | 160 | 26.9w - 2.1a | 918 | 32.7 | 7.2w - 0.56a | |
1157 | 160/15 | 25.2/7.36 - 2.1/.59 | 920 | 50.4 | 15.4w - 1.2a | |
1159 | 104 | 20.5w - 1.6a | 921 | 105.5 | 18.0w - 1.41a | |
1295 | 251 | 37.5w - 3.0a | 922 | 75.4 | 12.5w - 0.88a | |
1459 | 12 | 3.2w - 0.8a | 923 | 60.4 | 11.6w - 0.91a | |
1619 | 76 | 12.7w - 1.9a | ||||
1651 | 15.2 | 3.0w - 0.6a | ||||
1680 | 160.4 | 24.6w - 4.1a | ||||
3497 | 226 | 25.2w - 2.1a | ||||
5007 | 20 | 5.0w - 0.417a | ||||
5008 | 50 | 10.0w - 0.833a | ||||
7506 | 185.6 | 21.0w - 1.75a | ||||
7527 | 100.4 | 18.0w - 1.5a |
NOTE: In some vehicles the use of LED bulbs in turn-signal applications may not work properly. LED bulbs may cause some newer vehicles to indicate a bulb is burnt out (because of their low power consumption). Some cars indicate this by changing the flash rate of the turn signals (either very fast on very slow), and some turn on a bad bulb indicator. This can be remedied with Load Resistors wired into the turn signal circuit to simulate a filament bulb load. If LED 1157 bulbs are used in both front and back of the vehicle, only one resistor is needed in that circuit, but another resistor is needed in the circuit on the other side of the vehicle. It is recommended to install the bulbs and test them to see if resistors are needed. If replacing only one bulb, or using in trailer lights, there may be enough residual resistance in the circuit for the bulbs to operate properly. The Load Resistors are sold in packs of two.
A complete list of 12v LED bulbs coming soon.
FREQUENTLY BOUGHT TOGETHER
Back Pin G4 Led Bulb 160
Side Pin G4 Led Bulb 160
Side Pin G4 Led Bulb 205
12in Led Tube
18in Fluorescent Tube Led
Starlights Load Resistor
More Details
- Manufacturer Numbers
- 016-1036-25, 18-0015
- Manufacturer
- AP Products Inc
- UPC List
- 834760002369
- Product Cross-Sells
-
55-1073
55-1071
55-1072
18.0117
18.0125
18-0053 - Related Products
-
55-1003
55-1002
55-1000 - Popularity
- 13
- Bulb Number
- 1036
- Bulb Type
- LED
- Standard Pack
- 2
